Step Drills

Descriptions

Flute Type
Right hand cutting
Step Angel
90°
Point Angle
118°
Shank Type
3 flatted shank
Surface Treatment
Bright finish
Application
Cutting varying hole sizes in steel, high tensile steel up to 1.000N/mm2, cast steel, cast iron, metals and hard plastics up to 4mm thick without changing the drill bit. Each drill cuts parallel holes within a specific size range, rising in 2mm increments.
Manufactured To
Work standard
Material
HSS

Specifications

Number of Steps	Step drill set.jpg

Downloads

There are no downloads for this product.

You need to be logged in to see prices.

Code	Description	Number of Steps	Diameter	Pack Qty	Packaged In/On	Price
C131-0001	STD12 4 - 12 mm Step Drills	9	STD12 4 - 12mm	1	Boxed	You need to be logged in to see prices.
C131-0002	STD20 4 - 20 mm Step Drills	9	STD20 4 - 20 mm	1	Boxed	You need to be logged in to see prices.
C131-0003	STD30 4 - 30 mm Step Drills	14	STD30 4 - 30 mm	1	Boxed	You need to be logged in to see prices.

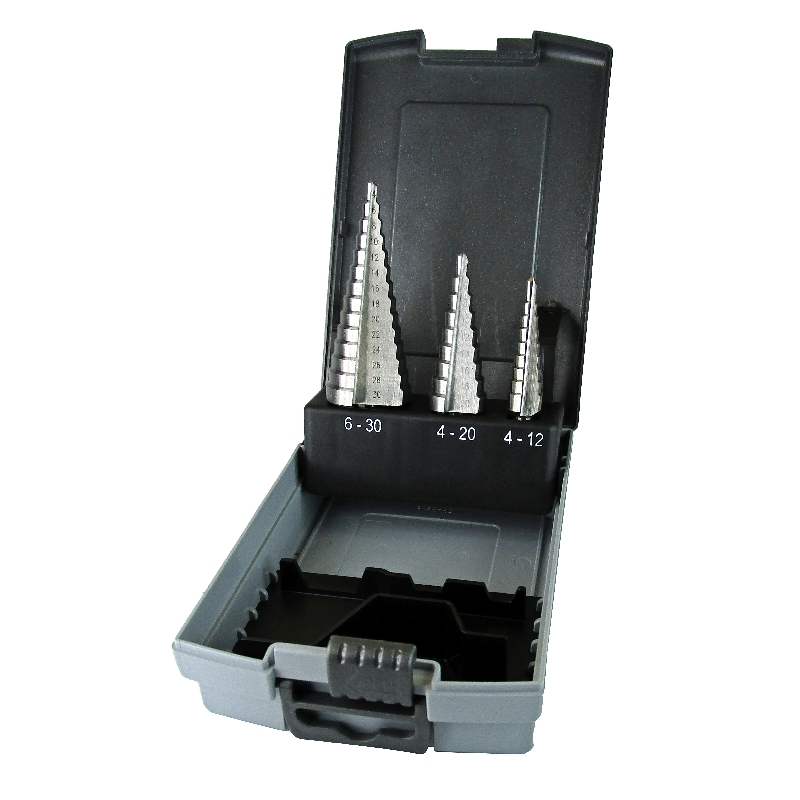

C131-0004SET	3pcs HSS Straight Flute Step Drill Set 4-12,4-20,4-30	4-12mm(9), 4-20mm(9), 4-30mm(14)	4-12mm, 4-20mm, 4-30mm	1	Plastic case	You need to be logged in to see prices.

You need to be logged in to see prices.
