Descriptions

Type of Thread
British standard whitworth thread
Tap Tolerance
Class 2 for medium fit
Flute Type
Straight flutes
Surface Treatment
Bright
Application
For hand tapping of through or blind holes in steel, some stainless steels, cast irons and non-ferrous materials such as Aluminium & Brass.
Manufactured To
ISO 529
Material
HSS
Set Consists of
Taper, second, bottom

There are no downloads for this product.

You need to be logged in to see prices.

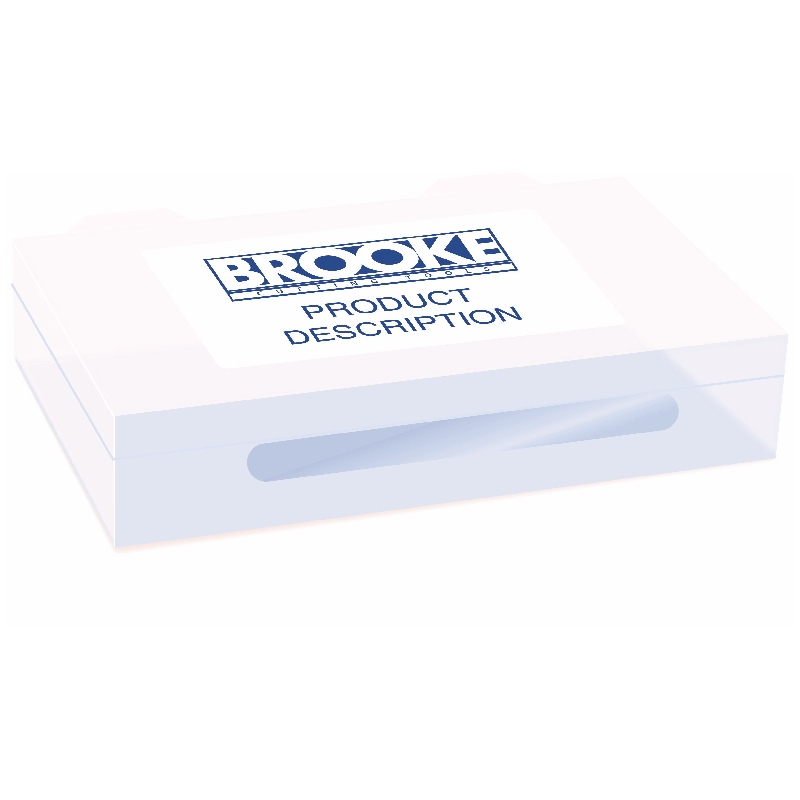

Code Description Diameter Type TPI Overall Length (mm) Thread Length (mm) Square Section (mm) Pack Qty Packaged In/On Price
5521-0012 HSS BSW SET 3/16 ISO529 TAPSET Brooke 3/16" Set(3) 24 58 16 4 1 Box
You need to be logged in to see prices.
5521-00121 HSS BSW TPR 3/16 ISO529 TAP Brooke 3/16" Taper 24 58 16 4 1 Box
You need to be logged in to see prices.
5521-00122 HSS BSW SEC 3/16 ISO529 TAP Brooke 3/16" Second 24 58 16 4 1 Box
You need to be logged in to see prices.
5521-00123 HSS BSW BOT 3/16 ISO529 TAP Brooke 3/16" Bottom 24 58 16 4 1 Box
You need to be logged in to see prices.
5521-0016 HSS BSW SET 1/4 ISO529 TAPSET Brooke 1/4" Set(3) 20 66 19 5 1 Box
You need to be logged in to see prices.
5521-00161 HSS BSW TPR 1/4 ISO529 TAP Brooke 1/4" Taper 20 66 19 5 1 Box
You need to be logged in to see prices.
5521-00162 HSS BSW SEC 1/4 ISO529 TAP Brooke 1/4" Second 20 66 19 5 1 Box
You need to be logged in to see prices.
5521-00163 HSS BSW BOT 1/4 ISO529 TAP Brooke 1/4" Bottom 20 66 19 5 1 Box
You need to be logged in to see prices.
5521-0020 HSS BSW SET 5/16 ISO529 TAPSET Brooke 5/16" Set(3) 18 72 22 6.3 1 Box
You need to be logged in to see prices.
5521-00201 HSS BSW TPR 5/16 ISO529 TAP Brooke 5/16" Taper 18 72 22 6.3 1 Box
You need to be logged in to see prices.
5521-00202 HSS BSW SEC 5/16 ISO529 TAP Brooke 5/16" Second 18 72 22 6.3 1 Box
You need to be logged in to see prices.
5521-00203 HSS BSW BOT 5/16 ISO529 TAP Brooke 5/16" Bottom 18 72 22 6.3 1 Box
You need to be logged in to see prices.
5521-0024 HSS BSW SET 3/8 ISO529 TAPSET Brooke 3/8" Set(3) 16 80 24 8 1 Box
You need to be logged in to see prices.
5521-00241 HSS BSW TPR 3/8 ISO529 TAP Brooke 3/8" Taper 16 80 24 8 1 Box
You need to be logged in to see prices.
5521-00242 HSS BSW SEC 3/8 ISO529 TAP Brooke 3/8" Second 16 80 24 8 1 Box
You need to be logged in to see prices.
5521-00243 HSS BSW BOT 3/8 ISO529 TAP Brooke 3/8" Bottom 16 80 24 8 1 Box
You need to be logged in to see prices.
5521-0028 HSS BSW SET 7/16 ISO529 TAPSET Brooke 7/16" Set(3) 14 85 25 6.3 1 Box
You need to be logged in to see prices.
5521-00281 HSS BSW TPR 7/16 ISO529 TAP Brooke 7/16" Taper 14 85 25 6.3 1 Box
You need to be logged in to see prices.
5521-00282 HSS BSW SEC 7/16 ISO529 TAP Brooke 7/16" Second 14 85 25 6.3 1 Box
You need to be logged in to see prices.
5521-00283 HSS BSW BOT 7/16 ISO529 TAP Brooke 7/16" Bottom 14 85 25 6.3 1 Box
You need to be logged in to see prices.
5521-0032 HSS BSW SET 1/2 ISO529 TAPSET Brooke 1/2" Set(3) 12 89 29 7.1 1 Box
You need to be logged in to see prices.
5521-00321 HSS BSW TPR 1/2 ISO529 TAP Brooke 1/2" Taper 12 89 29 7.1 1 Box
You need to be logged in to see prices.
5521-00322 HSS BSW SEC 1/2 ISO529 TAP Brooke 1/2" Second 12 89 29 7.1 1 Box
You need to be logged in to see prices.
5521-00323 HSS BSW BOT 1/2 ISO529 TAP Brooke 1/2" Bottom 12 89 29 7.1 1 Box
You need to be logged in to see prices.
5521-0040 HSS BSW SET 5/8 ISO529 TAPSET Brooke 5/8" Set(3) 11 102 32 10 1 Box
You need to be logged in to see prices.
5521-00401 HSS BSW TPR 5/8 ISO529 TAP Brooke 5/8" Taper 11 102 32 10 1 Box
You need to be logged in to see prices.
5521-00402 HSS BSW SEC 5/8 ISO529 TAP Brooke 5/8" Second 11 102 32 10 1 Box
You need to be logged in to see prices.
5521-00403 HSS BSW BOT 5/8 ISO529 TAP Brooke 5/8" Bottom 11 102 32 10 1 Box
You need to be logged in to see prices.
5521-0048 HSS BSW SET 3/4 ISO529 TAPSET Brooke 3/4" Set(3) 10 112 37 11.2 1 Box
You need to be logged in to see prices.
5521-00481 HSS BSW TPR 3/4 ISO529 TAP Brooke 3/4" Taper 10 112 37 11.2 1 Box
You need to be logged in to see prices.
5521-00482 HSS BSW SEC 3/4 ISO529 TAP Brooke 3/4" Second 10 112 37 11.2 1 Box
You need to be logged in to see prices.
5521-00483 HSS BSW BOT 3/4 ISO529 TAP Brooke 3/4" Bottom 10 112 37 11.2 1 Box
