22x82mm (7/8

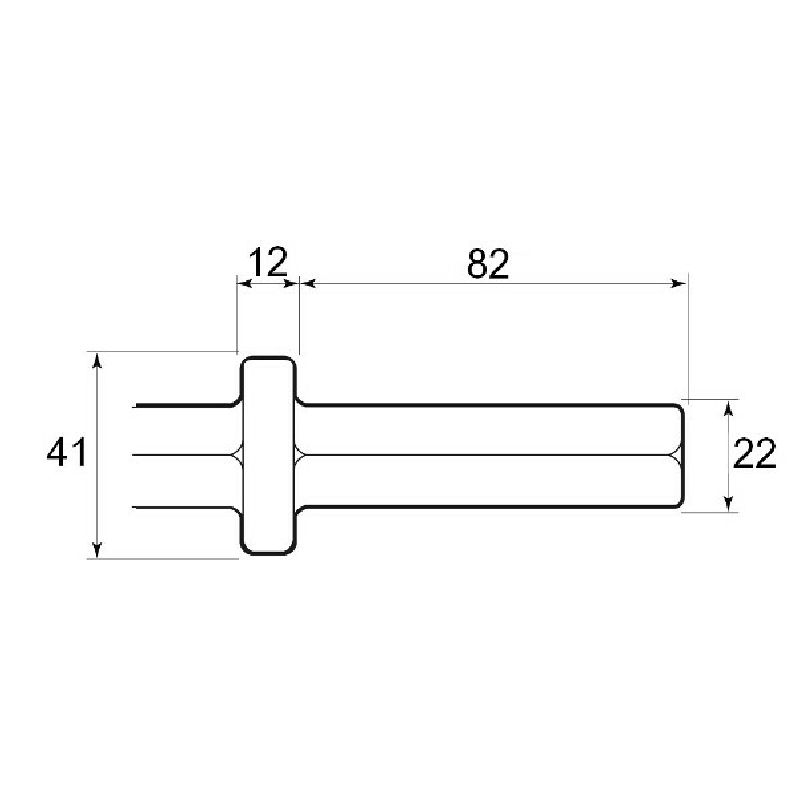

22x82mm (7/8Inchx3.1/4Inch) Hexagon Shank
22x82mm (7/8Inchx3.1/4Inch) Hexagon Shank

22x82mm (7/8"x3.1/4") Hexagon Shank

Descriptions

Hardened tempered chrome vanadium steel finished in a corrosion resistant surface finish.

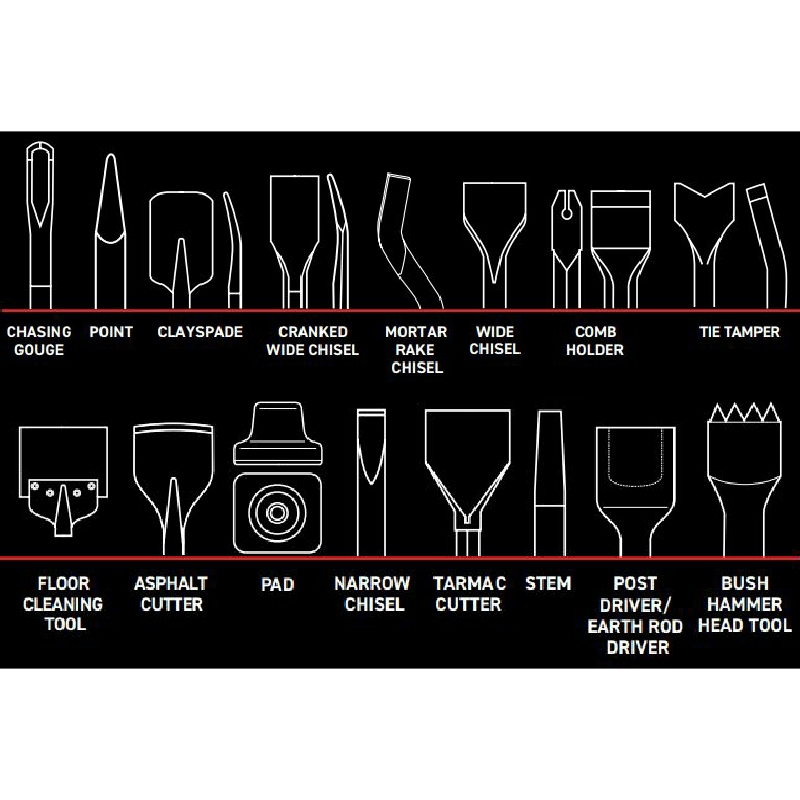

Application:
Points & narrow chisels - Mortising & demolition work in masonry & concrete, restoring joints & clearing reinforcements.
Wide chisels - Removing roughcasting and layers of dirt, removing concrete residues from foemwork boards & restoring steels.
Clayspades - Digging in hard compacted soil & clay.
Pad - Compacting soil, gravel & aggregates.
Stem - To suit the pad.

Hammer models to suit - Atlas Copco TX09 22x82, TX10 22x82, TX12 22x82 & LH 11, Belle BHB 12, GAV9, SK10, Hycon HH15.

There are no downloads for this product.

You need to be logged in to see prices.
Code Description Type Shank Type Working Width (mm) Under Collar (mm) Pack Qty Price
C251-910023 MP 22x82x380mm u/c Point 22x82mm Hex 380 1
You need to be logged in to see prices.
C251-910024 MP 22x82x450mm u/c Point 22x82mm Hex 450 1
You need to be logged in to see prices.
C251-910026 MP 22x82x610mm u/c Point 22x82mm Hex 610 1
You need to be logged in to see prices.
C251-910028 MP 22x82x915mm u/c Point 22x82mm Hex 915 1
You need to be logged in to see prices.
C251-910030 MP 22x82x1220mm u/c Point 22x82mm Hex 1220 1
You need to be logged in to see prices.
C251-910233 NC 22x82x380mm u/c Narrow Chisel 22x82mm Hex 22mm 380 1
You need to be logged in to see prices.
C251-910234 NC 22x82x450mm u/c Narrow Chisel 22x82mm Hex 22mm 450 1
You need to be logged in to see prices.
C251-910236 NC 22x82x610mm u/c Narrow Chisel 22x82mm Hex 22mm 610 1
You need to be logged in to see prices.
C251-910238 NC 22x82x915mm u/c Narrow Chisel 22x82mm Hex 22mm 915 1
You need to be logged in to see prices.
C251-910240 NC 22x82x1220mm u/c Narrow Chisel 22x82mm Hex 22mm 1220 1
You need to be logged in to see prices.
C251-910420 Broad Chisel 22x82x380 75mm Wide Chisel 22x82mm Hex 75 x 50mm 380 1
You need to be logged in to see prices.
C251-910913 Clayspade 22x82x380 100x165 Clayspade 22x82mm Hex 100 x 165mm 380 1
You need to be logged in to see prices.
C251-910910 Stem 22x82 S.Taper Stems (small taper to fit small bore pad) 22x82mm Hex 205 1
You need to be logged in to see prices.
C251-912905 Pad 125mmDia S.Bore Pads (small bore) 125mm pad diameter 1
